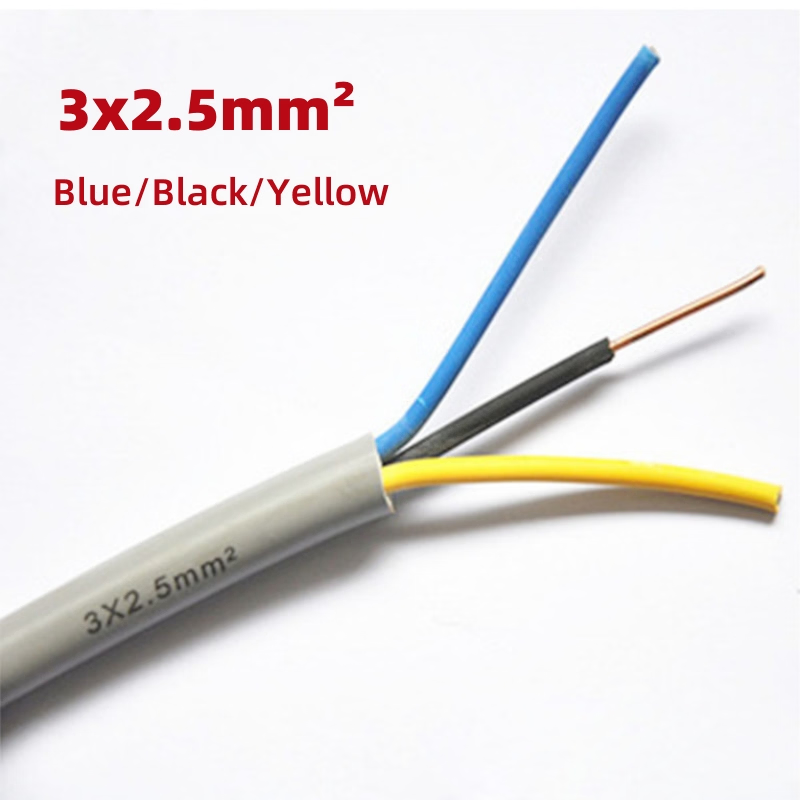

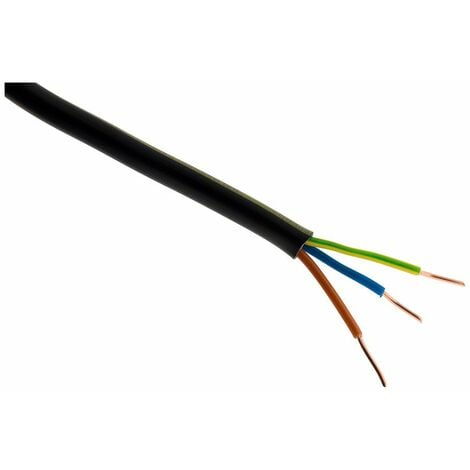

U‑1000 R2V 3×2.5 mm² rigid
1,600 CFA
Product Description (One Sentence)
The Borsan U‑1000 R2V 3×2.5 mm² rigid cable features three 2.5 mm² solid copper conductors insulated with XLPE and encased in a durable PVC filler and sheath; it is rated 600/1000 V (test voltage 4 kV), rated for ambient service up to +90 °C (short-circuit up to 250 °C), UV‑ and flame‑resistant, with a minimum bending radius of 12×D, offering approximately 32 A in air and 40 A in ground installations
- Key Specifications
- Conductors: 3 × 2.5 mm² solid copper (Class 1) borsan.com.tr+1borsan.com.tr+1
- In
- sulation: XLPE; Sheath/Filler: PVC Henan Hongda Cable+6borsan.com.tr+6borsan.com.tr+6
- Voltages: Rated 600/1000 V AC/DC, test up to 4000 V hongdacable.com+4borsan.com.tr+4borsan.com.tr+4
- Temperature Range: –5 °C to +90 °C (service); up to 250 °C short-circuit borsan.com.tr+3borsan.com.tr+3nexans.ma+3
- Current Capacity: ~32 A in air, ~40 A in ground borsan.com.tr+1borsan.com.tr+1
- Conductor Resistance: 7.41 Ω/km @20 °C Alibaba+12borsan.com.tr+12borsan.com.tr+12
- Outer Diameter: Approx. 9.6 mm Alibaba+4nexans.fr+4borsan.com.tr+4
- Net Weight: ~150 kg/km nexans.frborsan.com.tr
- Minimum Bending Radius: 12 × cable diameter Incore Cables+4borsan.com.tr+4borsan.com.tr+4
- Standards: Compliant with XP C 32‑321 (aligned with NF C 15‑100), flame-retardant IEC 60332‑1; UV‑resistant for outdoor without extra protection
