Key Characteristics

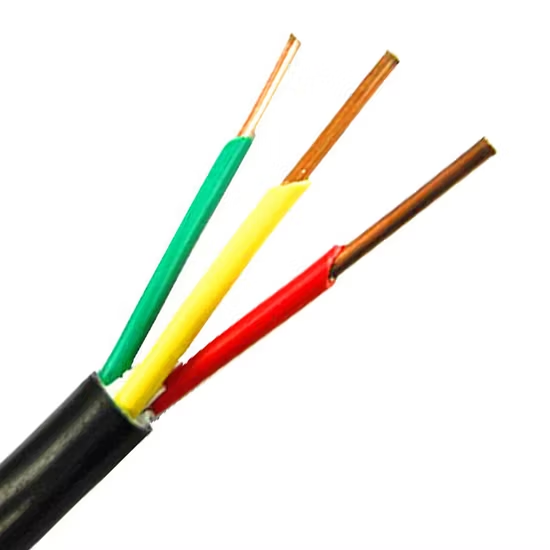

- Conductors: 3 × 1.5 mm² solid copper
- Insulation: XLPE
- Sheath & filler: PVC
- Rated voltage: 600/1000 V AC/DC; test voltage 4 kV sonepar.fr+6borsan.com.tr+6borsan.com.tr+6borsan.com.tr
- Temperature range: −5 °C to +90 °C (service); up to +250 °C in short-circuit borsan.com.trhongdacable.com
- Bending radius: ≥ 12× outer diameter
- Outer diameter: approx. 8.74 mm
- Resistance at 20 °C: ~12.1 Ω/km
- Net weight: ~113 kg/km
- Current capacity: 24 A (air), 31 A (ground) borsan.com.tr+13borsan.com.tr+13borsan.com.tr+13

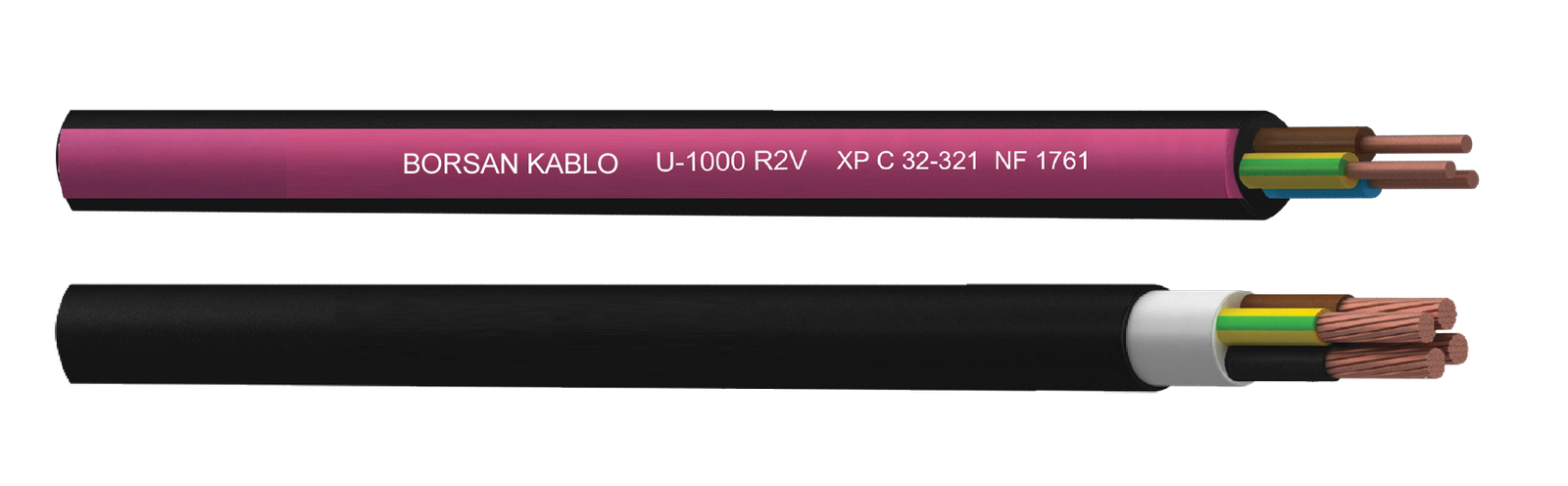

- Standard compliance: XP C 32‑321 (aligned with NF C 15‑100), flame-retardant IEC 60332‑1; UV-resistant, suitable for external use
