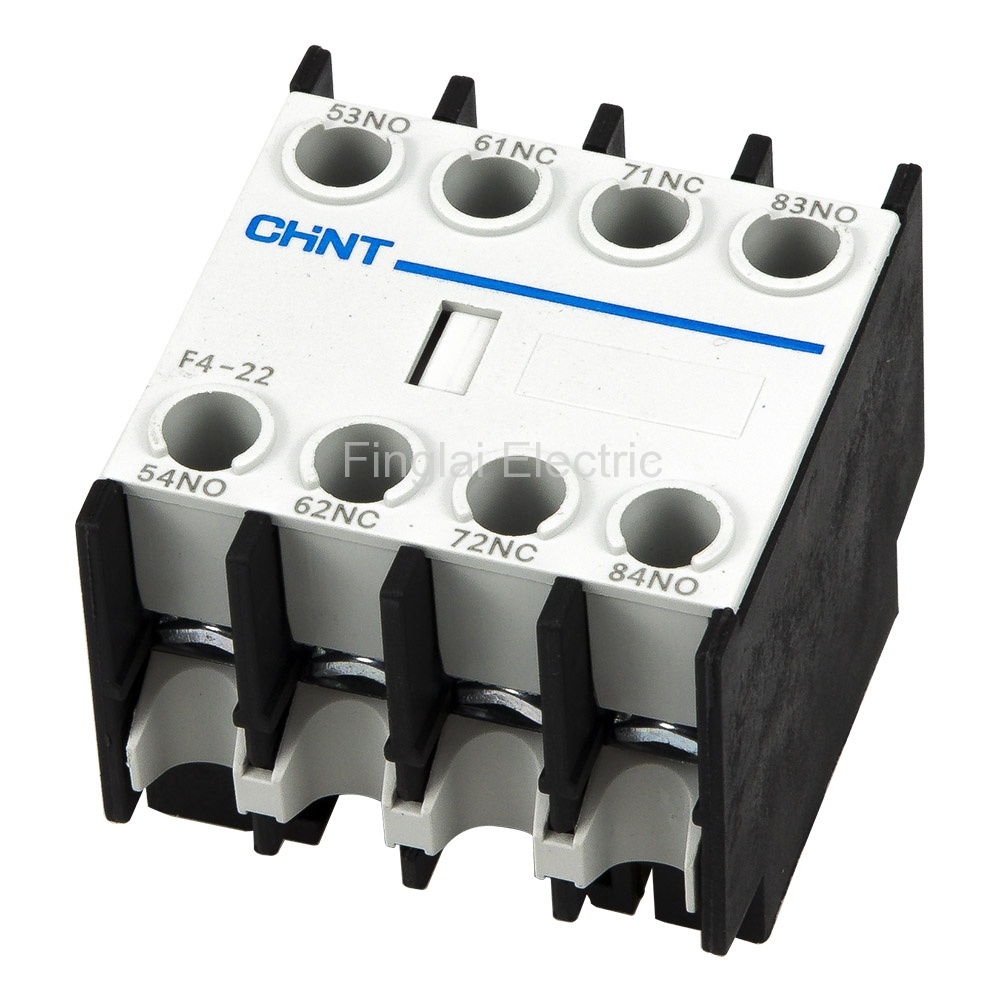

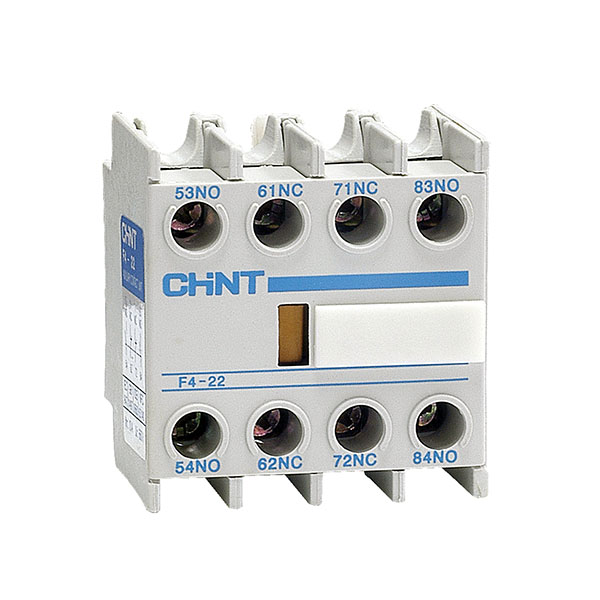

Bloc auxilliare 4p f4-22

Technical Characteristics
FeatureSpecificationModel / BrandCHINT F4‑22 auxiliary contact block  Contact Configuration4 poles: 2 NO + 2 NCRated Thermal CurrentIth = 10 ARated Insulation VoltageUi = 690 VACUtilization CategoryAC‑15, rated 360 VAC, DC‑13 = 33 W (per IEC 60947‑5‑1)   MountingSnap-on head on CJX2 (LC1‑D/NC1) contactors or DIN rail adapter    StandardsIEC/EN 60947‑5‑1 compliant    WeightApprox. 60 g   Polarity4‑pole block, compatible with 4‑pole contactors   ApplicationRemote signaling, interlocking, control extension for motor starters.
